Specifications
| Part Number |
IL-QDD-400G-ZR-CL
|
Vendor Name |
INNOVALINK |
| Form Factor |
QSFP-DD |
Data Rate |
400G |
| Wavelength |
1528.77~1566.52nm |
Reach Distance |
120Km with EDFA |
| Connector |
Duplex LC/UPC |
Media |
SMF |
| Transmitter Type |
EML |
Receiver Type |
PIN |
| TX Power |
-13~-9dBm |
RX Sensitivity |
Amplified:
Full Rx OSNR tolerance: -12~0dBm
Extended range: -15~1dBm
Unamplified: -20~0dBm
|
|
CD Robustness
|
2400(ps/nm) |
Minimum Receiver Power |
Amplified: -12dBm Unamplified: ≤-20dBm |
| Modulation Format |
|
Power Consumption |
18W |
| DDM/DOM |
Supported |
Commercial Grade |
0°C ~ +70°C |
|
| Core Size |
9μm/125μm |
Protocols |
OIF 400ZR, OIF-CMIS-05.2, OIF-C-CMIS-01.2, QSFP-DD-Hardware-Rev6.3, IEEE Std 802.3-2018 |

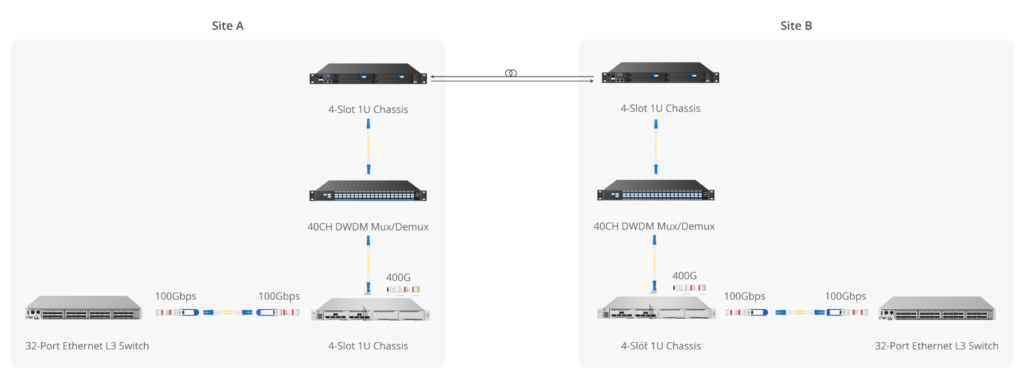

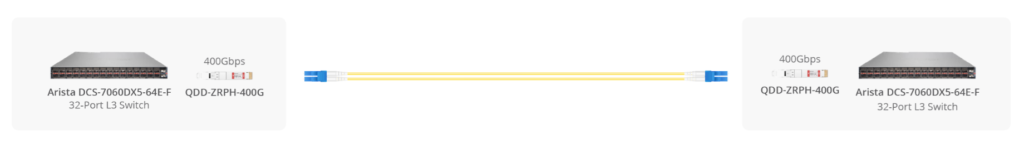

It is ideally suited for Data Center Interconnects (DCI), Metro Networks, and Telecom Carriers looking for high-density, low-power solutions.
