4x400G DCI BOX, 16*100G 1.6T transmission 1U Rack

Max support 16x100G for client side, 8x200G or 4x400G for line side in transmission. Total max is 1.6Tbps(3.2Tbps on bidirectional) in 1U device.
Achieve higher transfer capacity through device stacking. Maximum up to 19.2Tbps (200G*96ch@50GHz) or 25.6Tbps (400G*64 75GHz or 400G*48 100GHz)
1U chassis modular design, single board adopts hot-swappable design, supports smooth upgrade, and can flexibly expand or delete services according to needs.
Dual power supply, compatible with AC or DC power supply DC-48V.
Complete network management protocol: supports WEB, SNMP, CLI, TLI and other network management interfaces.
Support dual network management cards, 1+1 network function.

INQUIRE NOW

Send Us A Message

Products Details

4X400G DCI BOX 1U

4x100G QSFP28 To 400G CFP2，Maximum of 4x400G, 1.6Tbps in 1U Rack, and support 48*400G DWDM@100GHz or 64*400G DWDM@75GHz on dual fiber transmission.

400G DCI-BOX FW-8800 is a high-rate WDM transmission product develop by FIBERWDM.

One service card of 400G DCI Box support 4x100G(QSFP28) for clients side, and 1x400G(CFP2) for line side. With 4 slots in 1U rack mount ,the DCI-Box max support 4x 400G transponder board，total capacity 1.6Tbps . The Device is mainly used in data center DCI interconnection and metro access and aggregation. And provide users with optical transmission solutions with different capacities, different transmission distances, and intelligent service applications.

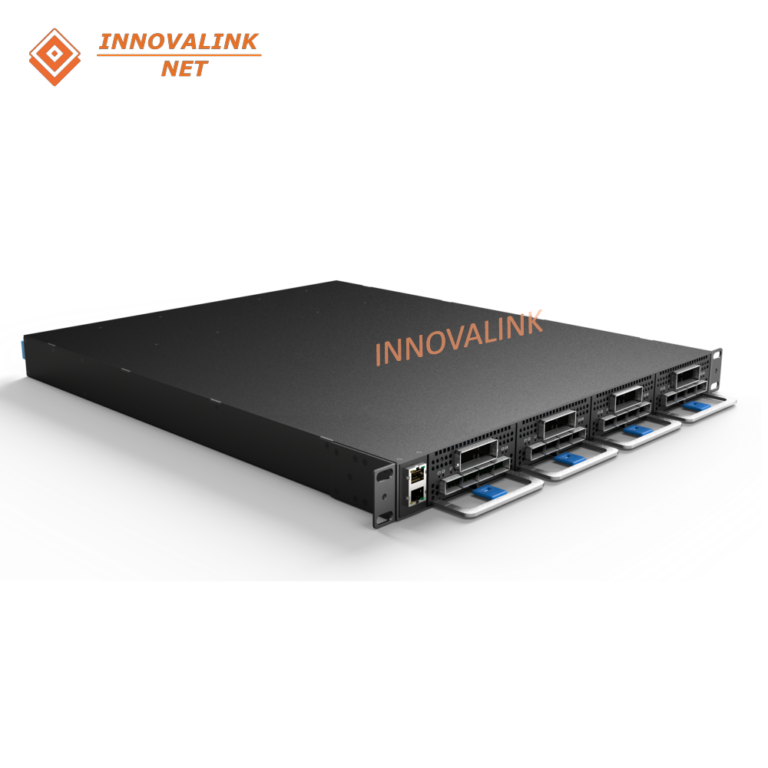

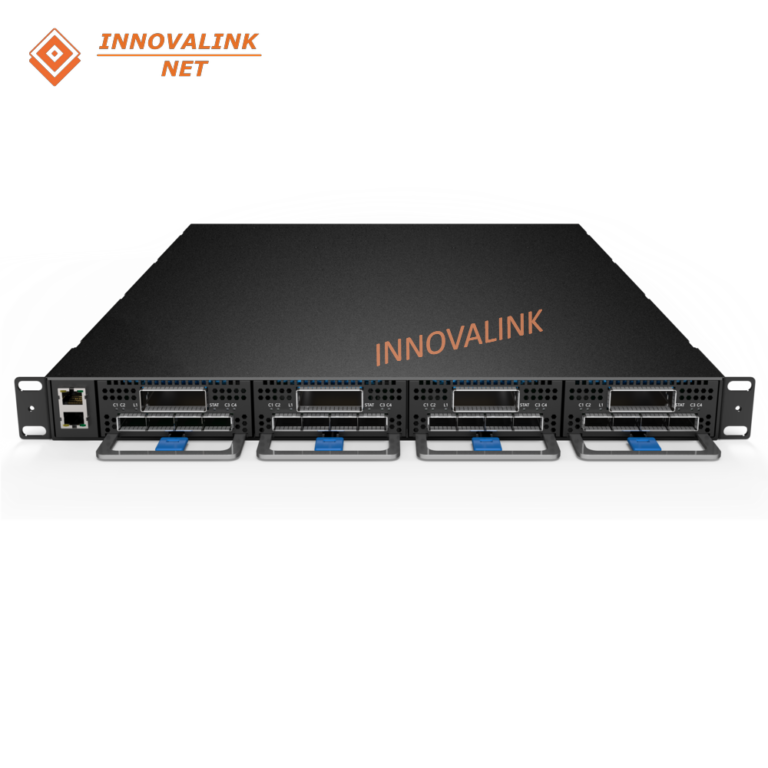

Product picture:
