100G QSFP28 BIDI 40Km 1305nm 1309nm Simplex LC Optical Transceiver Module for 100G 1 Fiber Link

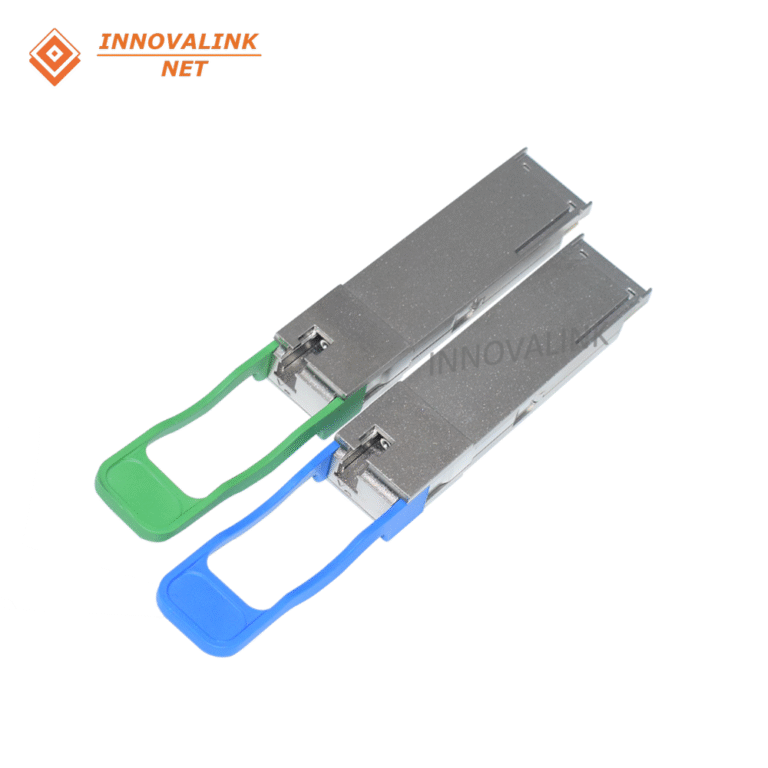

100G BIDI 40Km Simplex LC

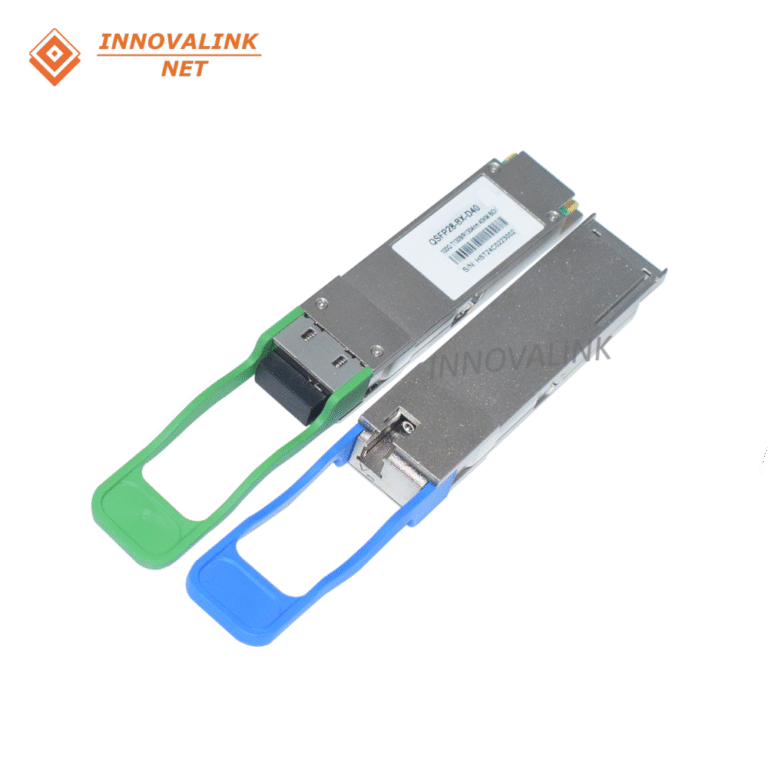

100G BIDI 40Km Simplex LC

100G QSFP28 BIDI 40Km 1305nm 1309nm Simplex LC Optical Transceiver Module for 100G 1 Fiber Link

Key Features

Support line rates from 103.125 Gb/s to 112.2 Gb/s OTU4
Built-in 4-channel Clock and Data Recovery (CDR) in TX and RX
LAN WDM EML laser and PIN receiver with SOA
Up to 40km reach for G.652 SMF
Hot pluggable 38 pin electrical interface
QSFP28 MSA compliant
BIDI LC optical receptacle
RoHS-10 compliant and lead-free
Excellent EMI performance
Single +3.3V power supply
Maximum power consumption 4.5W
Commercial Grade: 0℃ ~ 70℃

Applications

100GBASE-ZR4 Ethernet Links
Infiniband QDR and DDR interconnects
Telecom networking

Categories

DCI/OTN Solution

400G DCI Solution
Optical Transmission Network

Optics Transceiver

400G DCI Solution
Optical Transmission Network

AOC/DAC Cables

400G DCI Solution
Optical Transmission Network

WDM MuxDemux

400G DCI Solution
Optical Transmission Network

Send Us A Message

Full Name

Phone

Email

Products Details

100GBASE QSFP28 BiDi 40Km 1305nm 1309nm 40km DOM Simplex LC SMF Optical Transceiver Module

The 100G QSFP28 BiDi 40km optical transceiver is designed for long-reach 100G Ethernet applications over a single strand of single-mode fiber (SMF). Using bidirectional transmission with wavelengths of 1305nm and 1309nm, this module achieves high-speed 100Gbps connectivity up to 40 kilometers via a simplex LC connector.

It is fully compliant with QSFP28 MSA, IEEE 802.3ba, and supports Digital Optical Monitoring (DOM), enabling real-time monitoring of temperature, optical power, and voltage. This module is ideal for cost-effective metro network deployments, long-haul data center interconnects, and enterprise backbone networks where fiber availability is limited.

Its compact design and single LC/UPC interface offer a cost-effective and space-saving solution for high-speed 100G networks. Perfect for bidirectional data transmission, this module delivers scalable, high-performance solutions for modern networking demands.

Specifications

Part Number	IL-100G-BU-40 IL-100G-BD-40	Vendor Name	INNOVALINK
Form Factor	QSFP28	Data Rate	100G
Wavelength	1305nm 1309nm	Reach Distance	40km
Connector	Simplex LC	Media	SMF
Transmitter Type	EML	Receiver Type	APD
TX Power	1.7 ~ 4.5dBm	RX Sensitivity	≤16dBm
Power Budget	17.7dB	Receiver Overload	-3.0dB
Modulation Format	NRZ	Power Consumption	≤4.5W
DDM/DOM	Supported	Commercial Grade	0°C to 70°C (32 to 158°F)
Core Size	9μm/125μm	Protocols	QSFP28 MSA, IEEE 802.3bs

It is ideally suited for Data Center Interconnects (DCI), Metro Networks, and Telecom Carriers looking for high-density, low-power solutions.
